Thin Film Chip Resistor
Description: Thin Film Chip Resistors use high quality 99.6% Al2O3 substrates and TaN thin film resistor material, and are manufactured by thin film process techniques. They feature low stray capacitance and also have 4μm (±20%) thick Front Side (Resistor Side) Au and thicker than 1μm Back Side (Ground Side) Au. They are ideally suited for Microwave Integrated Circuits (MICs)，such as amplifier, attenuator, coupler, filter, and resonator modules, etc..
Features: High reliability TaN thin film resistors, low stray capacitance, good solder-ability and wire-bonding, temperature coefficient: 150 ppm/oC , operating temperature: -55 oC - +200oC.
Product Part Number (P/N) Information：
Product Series:
|
P/N |
Length
L（inch） |
Width
W（inch） |
Thickness
T（inch） |
Resistance
（Ω） |
Resistance Variation |
Rated Power
Dissipation
（mW） |
|
FRA-2828-10-1 |
0.028 |
0.028 |
0.010 |
1 |
±10% ±5% |
130 |
|
FRA-2828-15-1 |
0.028 |
0.028 |
0.015 |
1 |
±10% ±5% |
130 |
|
FRA-2828-10-2 |
0.028 |
0.028 |
0.010 |
2 |
±10% ±5% |
150 |
|
FRA2-828-15-2 |
0.028 |
0.028 |
0.015 |
2 |
±10% ±5% |
150 |
|
FRA-2828-10-3 |
0.028 |
0.028 |
0.010 |
3 |
±10% ±5% |
180 |
|
FRA-2828-15-3 |
0.028 |
0.028 |
0.015 |
3 |
±10% ±5% |
180 |
|
FRA-2828-10-4 |
0.028 |
0.028 |
0.010 |
4 |
±10% ±5% |
250 |
|
FRA-2828-15-4 |
0.028 |
0.028 |
0.015 |
4 |
±10% ±5% |
250 |
|
FRA-2828-10-5 |
0.028 |
0.028 |
0.010 |
5 |
±10% ±5% |
230 |
|
FRA-2828-15-5 |
0.028 |
0.028 |
0.015 |
5 |
±10% ±5% |
230 |
|
FRA-2828-10-10 |
0.028 |
0.028 |
0.010 |
10 |
±10% ±5% |
300 |
|
FRA-2828-15-10 |
0.028 |
0.028 |
0.015 |
10 |
±10% ±5% |
300 |
|
FRA-2828-10-15 |
0.028 |
0.028 |
0.010 |
15 |
±10% ±5% |
450 |
|
FRA-2828-15-15 |
0.028 |
0.028 |
0.015 |
15 |
±10% ±5% |
450 |
|
FRA-2828-10-20 |
0.028 |
0.028 |
0.010 |
20 |
±10% ±5% |
600 |
|
FRA-2828-15-20 |
0.028 |
0.028 |
0.015 |
20 |
±10% ±5% |
600 |
|
FRA-2020-10-30 |
0.020 |
0.020 |
0.010 |
30 |
±10% ±5% |
460 |
|
FRA-2020-15-30 |
0.020 |
0.020 |
0.015 |
30 |
±10% ±5% |
460 |
|
FRA-2020-10-40 |
0.020 |
0.020 |
0.010 |
40 |
±10% ±5% |
620 |
|
FRA-2020-15-40 |
0.020 |
0.020 |
0.015 |
40 |
±10% ±5% |
620 |
|
FRA-2020-10-50 |
0.020 |
0.020 |
0.010 |
50 |
±10% ±5% |
500 |
|
FRA-2020-15-50 |
0.020 |
0.020 |
0.015 |
50 |
±10% ±5% |
500 |
|
FRA-2020-10-75 |
0.020 |
0.020 |
0.010 |
75 |
±10% ±5% |
420 |
|
FRA-2020-15-75 |
0.020 |
0.020 |
0.015 |
75 |
±10% ±5% |
420 |
|
FRA-2020-10-100 |
0.020 |
0.020 |
0.010 |
100 |
±10% ±5% |
360 |
|
FRA-2020-15-100 |
0.020 |
0.020 |
0.015 |
100 |
±10% ±5% |
360 |
|
FRA-2020-10-200 |
0.020 |
0.020 |
0.010 |
200 |
±10% ±5% |
500 |
|
FRA-2020-15-200 |
0.020 |
0.020 |
0.015 |
200 |
±10% ±5% |
500 |
|
FRA-2020-10-300 |
0.020 |
0.020 |
0.010 |
300 |
±10% ±5% |
270 |
|
FRA-2020-15-300 |
0.020 |
0.020 |
0.015 |
300 |
±10% ±5% |
270 |
|
FRA-2020-10-400 |
0.020 |
0.020 |
0.010 |
400 |
±10% ±5% |
360 |
|
FRA-2020-15-400 |
0.020 |
0.020 |
0.015 |
400 |
±10% ±5% |
360 |
|
FRA-2020-10-500 |
0.020 |
0.020 |
0.010 |
500 |
±10% ±5% |
450 |
|
FRA-2020-15-500 |
0.020 |
0.020 |
0.015 |
500 |
±10% ±5% |
450 |
|
FRA-2020-10-600 |
0.020 |
0.020 |
0.010 |
600 |
±10% ±5% |
540 |
|
FRA-2020-15-600 |
0.020 |
0.020 |
0.015 |
600 |
±10% ±5% |
540 |
|
FRA-2020-10-800 |
0.020 |
0.020 |
0.010 |
800 |
±10% ±5% |
720 |
|
FRA-2020-15-800 |
0.020 |
0.020 |
0.015 |
800 |
±10% ±5% |
720 |
|
FRA-2020-10-1000 |
0.020 |
0.020 |
0.010 |
1000 |
±10% ±5% |
620 |
|
FRA-2020-15-1000 |
0.020 |
0.020 |
0.015 |
1000 |
±10% ±5% |
620 |
Note: *: Other Attenuator product thickness such as 0.005” also available, please contact Eng. Department.
Length (L) and Width (W) Tolerance:±0.002”;
Thickness (T) Tolerance:±0.001”;
Resistance Variation: typical±10%,±5% also available.

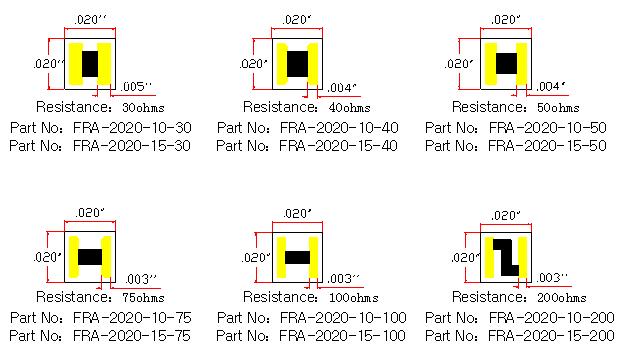

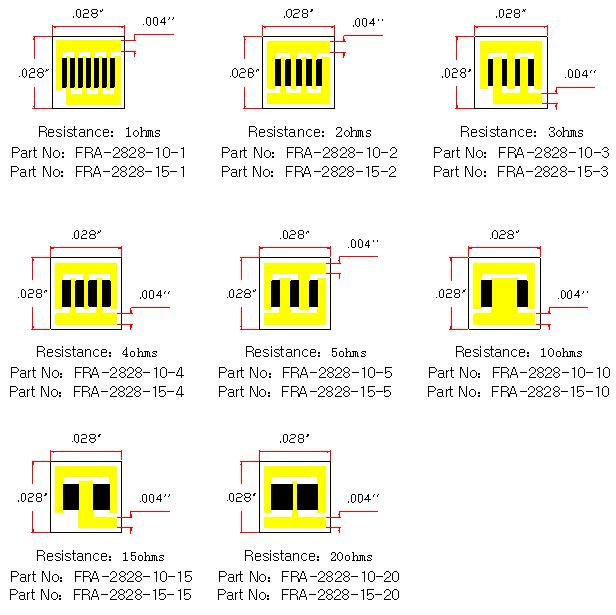

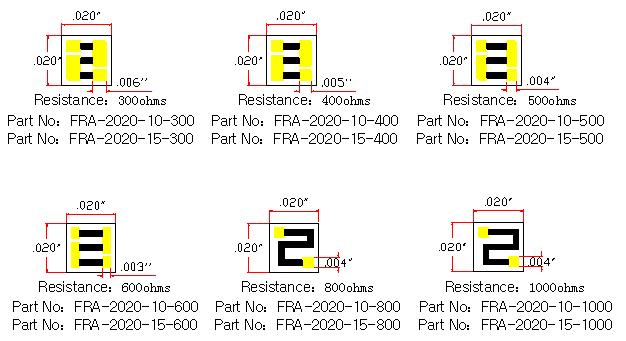

Thin Film Chip Resistor Drawings：
|
