50 ohms Microstrip Transmission Lines
FIDELICS offers two types of 50 ohm transmission lines. Transmission Lines have a fixed width and adjustable lengths, no mask purchase required. Fast delivery become actual.
Material: Asfired Alumina 99.6% Dielectric Constant ¦År= 9.9 @25¡æ1MHz
Metalization: Front side Au = 160µ"¡À20% (4 microns).
Back side Au > 40µ" (1microns)
Single Transmission Lines:
|
Material thicknesses |
Circuit Widt |
FIDELICS Part number |
Drawing |
|
0.005" (0.127mm) |
0.031"(0.8mm) |
HC-AA-005-031-XXX |
|
|
0.010" (0.254mm) |
0.050" (1.27mm) |
HC-AA-010-050-XXX |
|
|
0.010" (0.254mm) |
0.039"£¨1.0mm£© |
HC-AA-010-039-XXX |
|
|
0.015" (0.381mm) |
0.050" (1.27mm) |
HC-AA-015-050-XXX |
|
|
0.015" (0.381mm) |
0.079" (2.0mm) |
HC-AA-015-079-XXX |
|
|
0.020" (0.508mm) |
0.050" (1.27mm) |
HC-AA-020-050-XXX |
|
|
0.025" (0.635mm) |
0.050" (1.27mm) |
HC-AA-025-050-XXX |
|

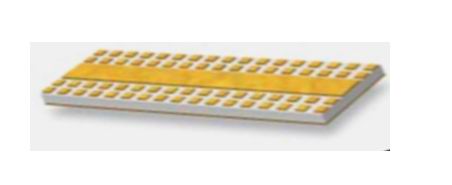

Single Transmission Lines with Four Rows of Tuning Pads:
|
Material thicknesses |
Circuit Widt |
FIDELICS Part number |
Drawing |
|
0.005" (0.127mm) |
0.031" (0.8mm) |
HC-AA-005-031-XXX-4P |
|
|
0.015" (0.381mm) |
0.030" (0.76mm) |
HC-AA-015-030-XXX-2P |
|
|
0.015" (0.381mm) |
0.050" (1.27mm) |
HC-AA-015-050-XXX-4P |
|
